261kWh Commercial & Industrial BESS
High-Voltage 650–949V Outdoor Battery Energy Storage Cabinet
The MICRO POWER 261kWh Battery Energy Storage System (BESS) is a high-voltage commercial and industrial energy storage solution designed for factories, industrial parks, commercial buildings, and renewable energy projects requiring reliable and scalable power management.
Built with advanced LiFePO₄ (LFP 3.2V 280Ah) battery cells, this 233kWh usable capacity system delivers long service life (≥6000 cycles), high operational safety, and stable performance under demanding industrial conditions. With a wide battery working voltage range of 650–949V, the system ensures efficient energy conversion and optimized performance for grid-connected, off-grid, and hybrid applications.
Engineered for outdoor deployment, the IP54-rated cabinet with C4 corrosion protection ensures durability in harsh environments, making it ideal for long-term commercial operation.
Designed for Commercial & Industrial Applications
This 261kWh battery storage system is ideal for:
Peak Shaving & Demand Charge Reduction
Factory & Industrial Park Energy Optimization
Solar + Storage Hybrid Systems
Backup Power for Critical Loads
Microgrid & Distributed Energy Projects
Data Centers & Commercial Buildings
With a total cabinet weight of 3000kg and industrial structural design, the system ensures mechanical stability, safety compliance, and long-term reliability.
Scalable & Smart Energy Storage Solution

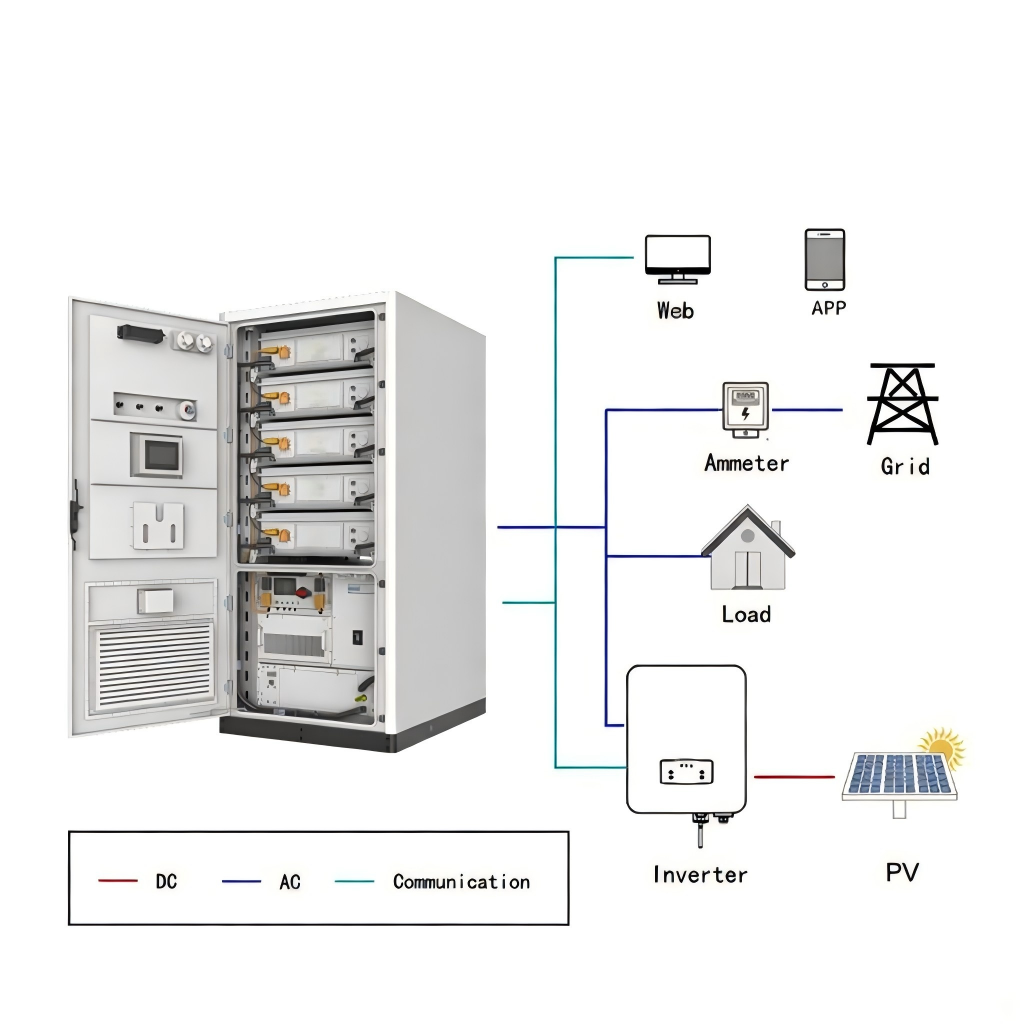

The modular battery architecture (46.6kWh per module) allows flexible expansion for larger commercial and industrial energy storage projects. Integrated remote communication (ETH / 4G) enables real-time monitoring, system diagnostics, and smart energy management.
This high-voltage outdoor BESS cabinet provides a cost-effective, safe, and scalable solution for modern commercial energy storage demands.
| Battery Specifications – MICRO POWER 261kWh |
|---|
| Model | MICRO POWER 261kWh |
| Capacity (kWh) | 233 kWh |
| Battery Working Voltage | 650 ~ 949 V |
| Standard Voltage | 166.4 V |
| Cell Type | LFP 3.2V 280Ah |
| Each BAT Capacity | 46.6 kWh |
| Cycle Life | ≥6000 cycles (@25℃±2℃, 0.5C/0.5C, 70% EOL) |
| Maximum Cycle Efficiency | 92% |
| AC Output Frequency / Voltage | 50/60Hz; 380/400Vac |
| Grid Type | 3P4W |
| Working Temperature | -20℃ ~ 55℃ |
| Operating Altitude | ≤2000 m |
| IP Level | IP54 |
| Corrosion Protection Level | C4 |
| Installation | Ground Mounted |
| Cabinet Dimension (W×D×H) | 1100 × 1500 × 2385 mm |
| Total Weight | 3000 kg |
| Module Size (W×D×H) | 784 × 1160 × 242 mm |
| Each Module Weight | 323 kg |
| Communication | Ethernet / 4G |
