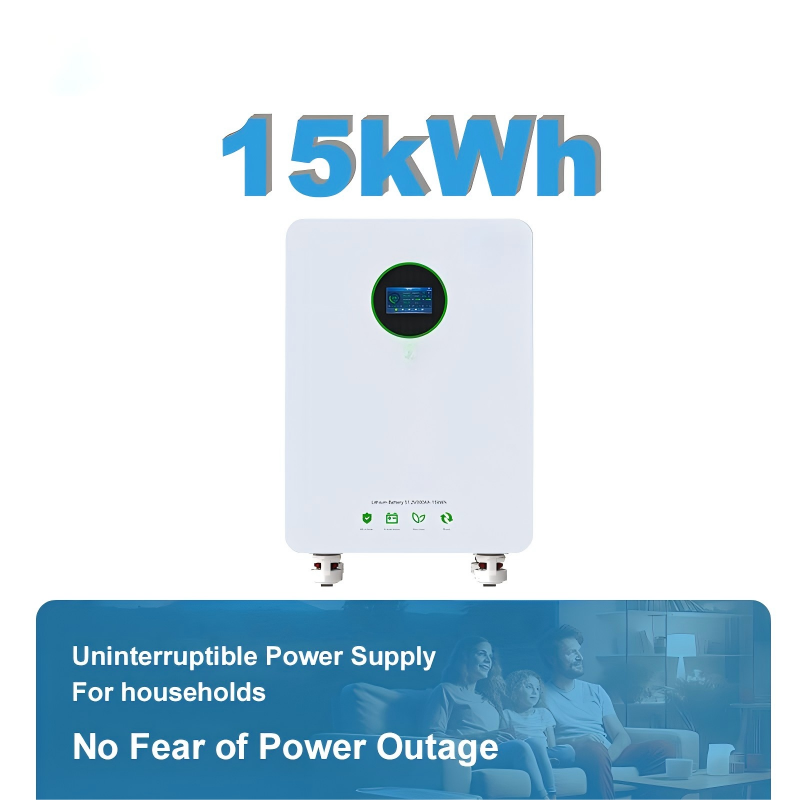

Futurevolt iBattery FU-314 is a 15kWh 51.2V 300Ah LiFePO4 battery designed for 15kW home solar systems with battery backup.
Featuring 8000 cycles, smart BMS protection, and a 10-year warranty, it is CE & UN38.3 certified and fully compatible with 48V hybrid inverters across Europe.
The Futurevolt iBattery FU-314 is a high-performance 15kWh LiFePO4 battery designed for 15kW solar systems with battery backup. Built with advanced 51.2V 300Ah lithium iron phosphate (LFP) cells, this home energy storage solution delivers long cycle life, intelligent BMS protection, and seamless compatibility with mainstream inverters.
Engineered for residential solar applications, emergency backup power, and hybrid solar systems, the FU-314 provides reliable, safe, and expandable energy storage for modern homes.
The Futurevolt FU-314 is optimized for:
15kW residential solar systems
Hybrid solar inverter systems
Off-grid solar installations
Home backup power supply
Emergency power systems
With 8000+ cycle life and a 10-year warranty, this LiFePO4 battery ensures long-term performance and lower total cost of ownership compared to traditional lead-acid batteries.
The built-in intelligent Battery Management System (BMS) provides:
Overcharge & over-discharge protection
Short-circuit protection
Overcurrent protection
Temperature monitoring
Cell balancing function
This guarantees maximum safety, stable output, and extended battery lifespan.

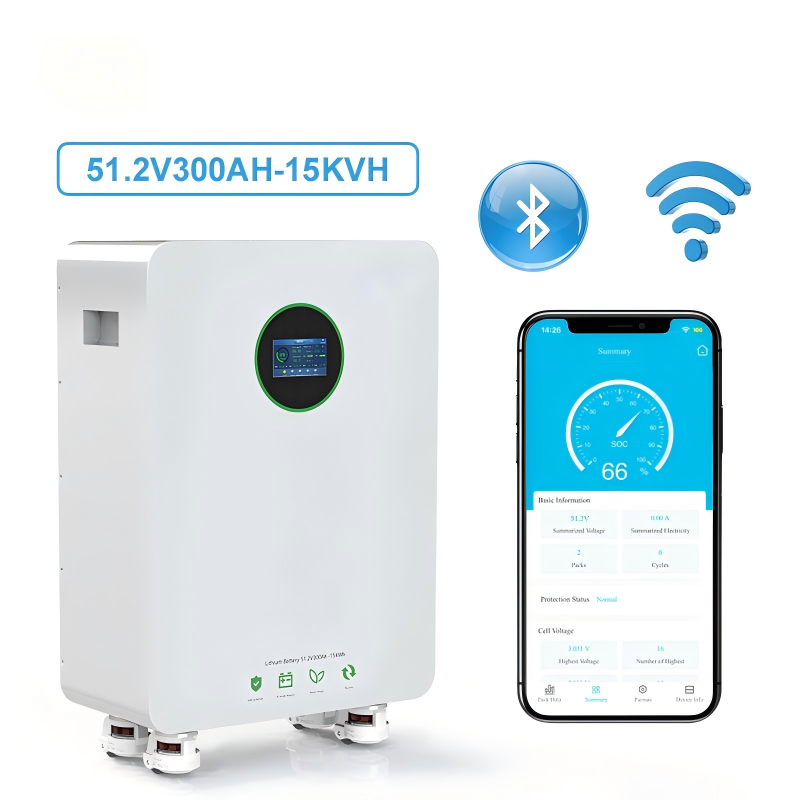

The iBattery FU-314 supports CAN and RS485 communication protocols, ensuring compatibility with most 48V/51.2V hybrid inverters used in residential solar systems.
Perfect for solar installers, distributors, and EPC contractors seeking reliable home energy storage solutions.
| Parameter | Specification |
|---|---|
| Model | Futurevolt iBattery FU-51.2V 300Ah |
| Brand Name | Futurevolt |
| Nominal Voltage | 51.2V |
| Capacity | 300Ah |
| Nominal Energy | 15kWh |
| Battery Chemistry | LiFePO4 (LFP) |
| Cycle Life | 8000 Cycles |
| Warranty | 10 Years |
| Chargeable | Yes |
| Applications | Solar Energy Storage, Home Backup Power, Emergency Power Supply |
| Certifications | CE, UN38.3, MSDS, RoHS |
| Communication Protocol | CAN2.0 / RS485 (Customizable) |
| LCD Display | Optional |
| OEM / ODM | Available |

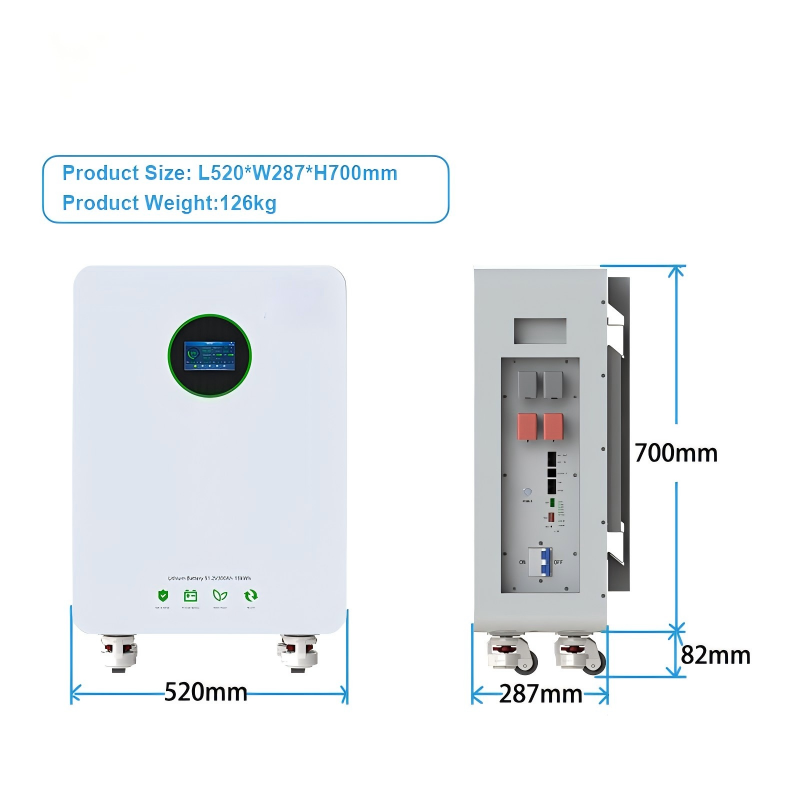

| Dimensions (W×D×H) | 520 × 287 × 700 mm |
